Locker Open#

How to use locker open. Our lightweight app clip#

Be sure to have a link provided by lockeropen.com before you try to use the Locker open app. Instructions for developers on how to create these links are on the bottom of this page. At the moment Locker Open only supports a single open transaction

Locker Open is an App clip that is our easiest way to open a locker. Simply tap a link:

And hit Open app clip to use Locker Open and pop the locker open!: You can also follow the link at the bottom to the app store to download the full Locker Open app.

More information on App Clips #

Using the App Clip#

Grant permissions to the app#

This step is needed for dropoff or pickup, it only needs to be done once.

Connecting to the tower#

Stay within 10 feet (2m) of the locker while the app is trying to connect.

Drop off#

The locker should open now ready for your drop off

Locker has opened#

The locker should open now ready for your drop off, put your item in and be sure to close the locker. Now your dropoff is complete!

Picking up#

Use the link that was provided to you

Be sure to close the locker door

Creating Deeplinks#

Webhooks are the way our backend notifies our clients about actions.

To correctly configure a webhook and start receiving notifications, our service provider must provide a link where they intend to receive these notifications. With this link and their client ID in Keycloak, our administrators will have everything necessary to create the new webhook.

To understand how it works, we will use our Locker Open flow as an example.

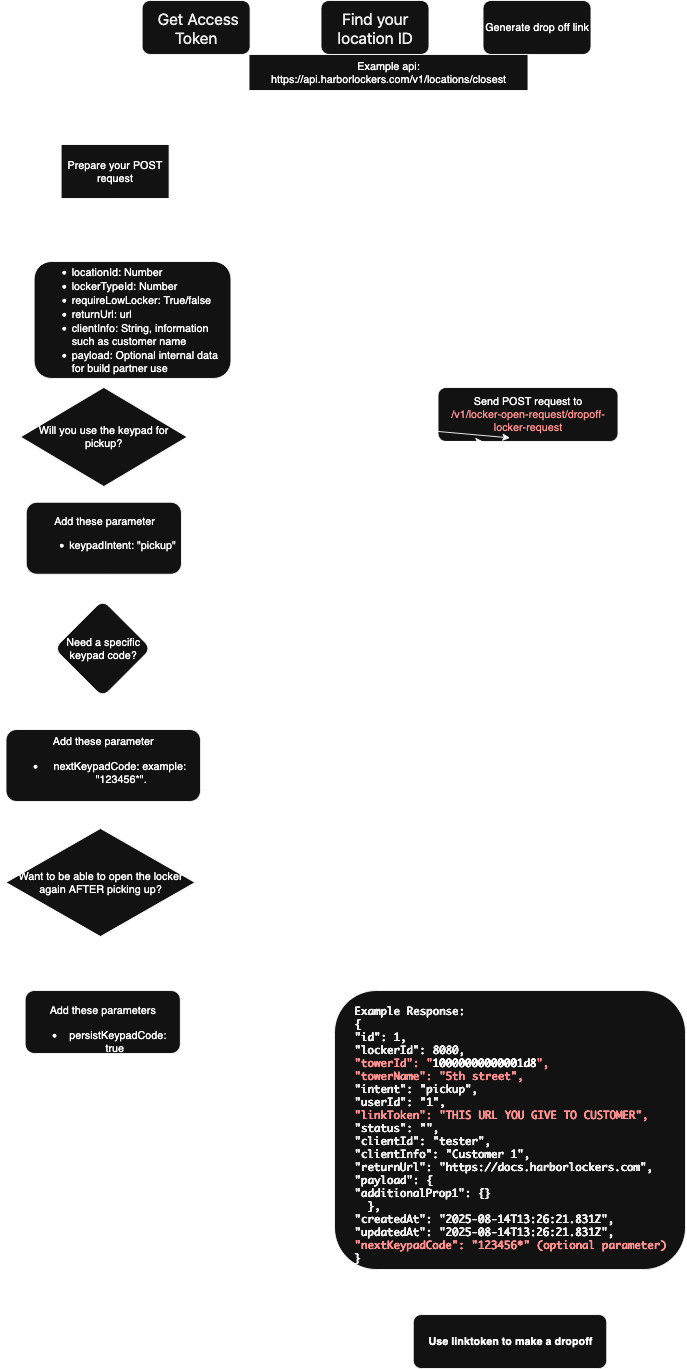

Locker Open Request for Dropoff#

Our service provider will generate a Locker Open Request for dropoff.

This will send a notification to the configured webhook of the service provider with information in this format:

{
  "timestamp": "2025-04-01T13:02:37",
  "event": "LOCKER_ASSIGNED",
  "data": {
    "timestamp": "2025-04-01T16:02:36.884285+00:00",
    "locker_id": 9,
    "locker_status": "rented",
    "tower_id": "0000000000000001",
    "source": "LOCKER_OPEN_LINK_CREATED",
    "reservation_id": null,
    "open_locker_token_id": null,
    "keypad_code": null,
    "client_info": null,
    "locker_open_request_id": 56,
    "locker_open_request_payload": {
      "extra": "data",
      "test": 123
    }
  }
}

Similarly, when the end user uses the link to perform the dropoff, another notification of the same type will be sent to the configured webhook:

One when the token to open the locker is created:

{
  "timestamp": "2025-04-01T13:12:57",
  "event": "LOCKER_OPERATION",
  "data": {
    "timestamp": "2025-04-01T16:12:57.521044+00:00",
    "locker_id": 9,
    "locker_status": "rented",
    "tower_id": "0000000000000001",
    "source": "LOCKER_TOKEN_CREATED",
    "reservation_id": null,
    "open_locker_token_id": 52,
    "keypad_code": null,
    "client_info": "Luis",
    "locker_open_request_id": null,
    "locker_open_request_payload": null
  }
}

Another when the token is finally used:

{
  "timestamp": "2025-04-01T13:15:47",
  "event": "LOCKER_OPERATION",
  "data": {
    "timestamp": "2025-04-01T16:15:45+00:00",
    "locker_id": 9,
    "locker_status": "occupied",
    "tower_id": "0000000000000001",
    "source": "LOCKER_TOKEN_USED",
    "reservation_id": null,
    "open_locker_token_id": 52,
    "keypad_code": null,
    "client_info": "Luis",
    "locker_open_request_id": 56,
    "locker_open_request_payload": {
      "extra": "data",
      "test": 123
    }
  }
}

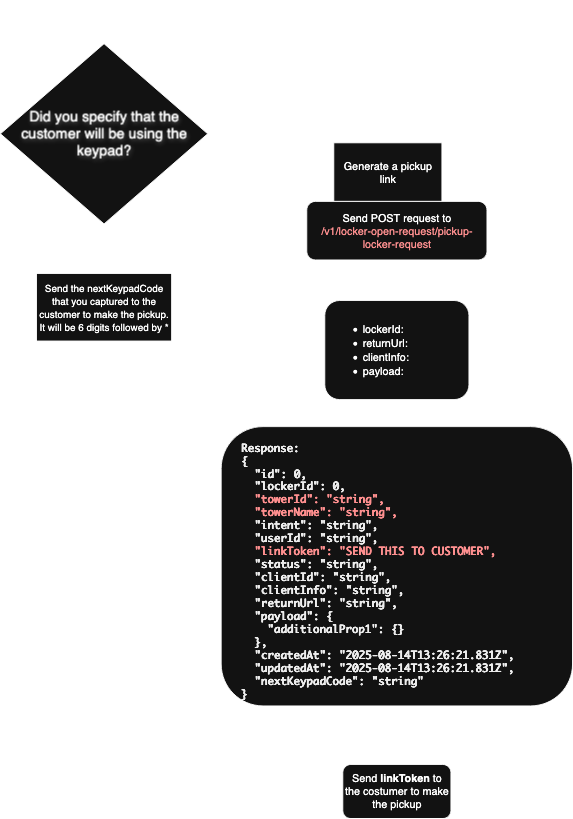

Pickup Process#

The same process will be repeated during the pickup process, notifying this webhook that the user has finally retrieved their product from the locker.
